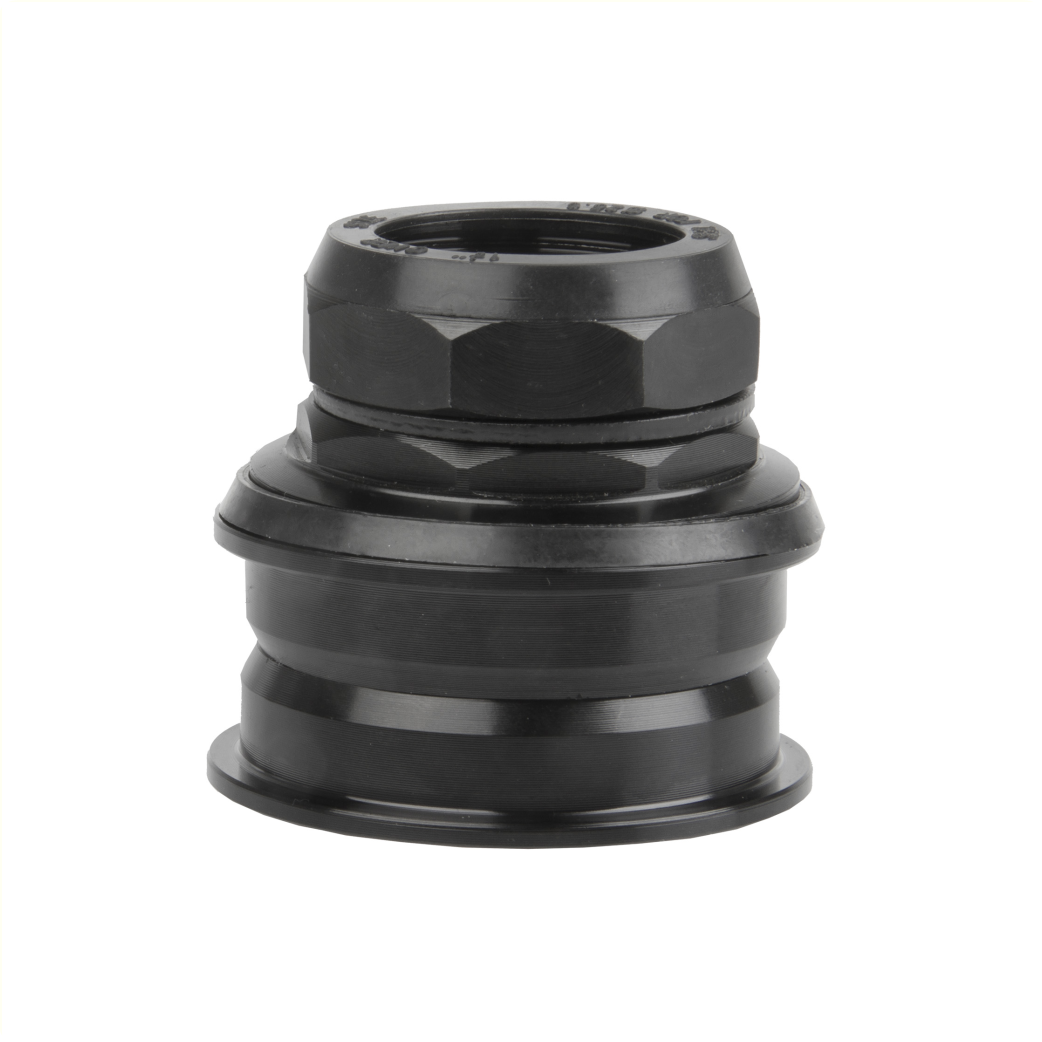

• Size: 1 1/8"
• Bearing: Sealed bearing
• Ball bearing position; semi-integrated ball bearing cups
• Height: 25.5 mm
• Upper part head set SHIS: ZS 44/28.6
• Lower part head set: ZS 44/30
• Internal diameter: 28.5 mm
• Outer diameter of the (upper) bearing cup (B1): 44.0 mm
• Outer diameter of the lower bearing cup (B2): 44.0 mm
• Cone seat on the fork: 30 mm
